522496S Macs USA VersaTie Track Kit #4. 1 x 2.44M Single Track Length + Fastenings + 4 x Single Stud Rings
larger imageMove mouse over the image to magnify
522496S

522496S Macs USA VersaTie Track Kit #4. 1 x 2.44M Single Track Length + Fastenings + 4 x Single Stud Rings

NZ $220.00
Qty.
522496S Macs USA VersaTie Track Kit #4. 1 x 2.44M Single Track Length + Fastenings + 4 x Single Stud Rings
Macs-header2





The wider surface mounted extrusion is ideal for deck surfaces where a wider footprint will reduce trip points.

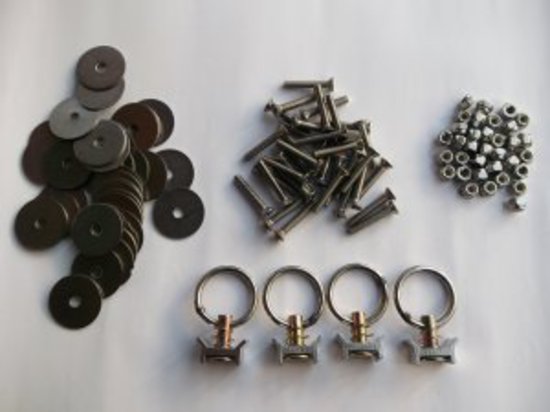

Kit Includes:

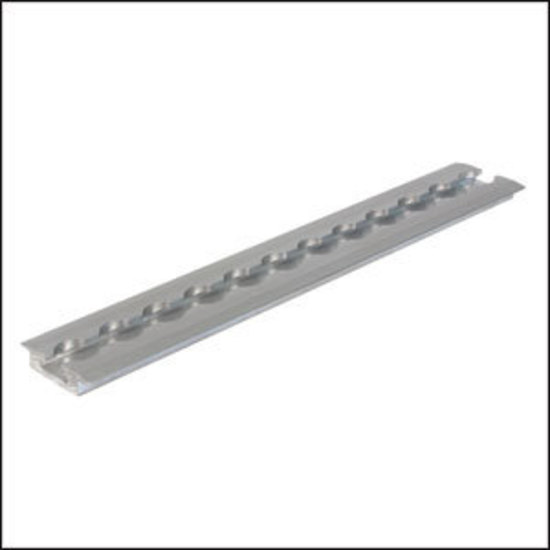

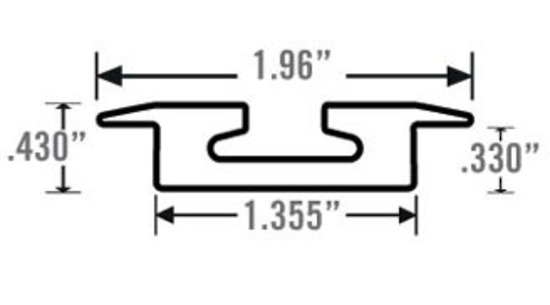

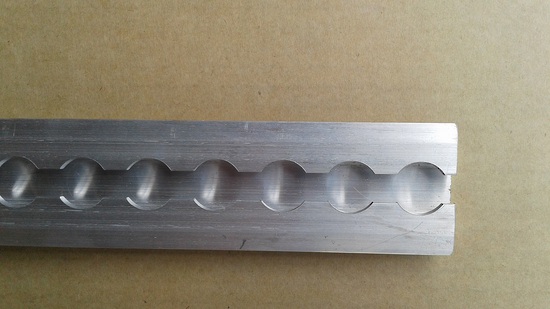

1 x  2.44M (8Ft) track machined from heat treated aluminium alloy 6061 T6 at Macs Idaho CNC machine shop.  Track 4 profile is 11mm (.430") total height with 8.5mm (.330") from flat base to underside of floor overlap. Width at bottom is 34.4mm (1.355") and across the top 50mm (1.96").Track holes :1st hole each end to centre is at 15mm and thereafter at 152mm (6") centres. Typically supplied with 17 pre drilled holes but  undrilled track available on request.

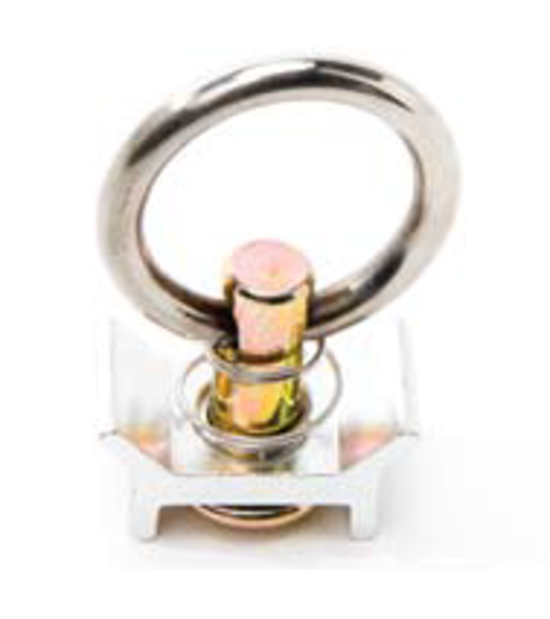

4 x Removable single stud tie down rings with 450kg (1000Lb) loading . A trademarked product exclusive to Macs incorporating: All fastenings including:
17 x 1/4" UNC x 1 1/2 " stainless steel countersunk machine screws
17 x 1/4" x 1 1/2" stainless steel flat washers
17 x 1/4" UNC flanged nuts

NB: Transport of 2.44M lengths throughout NZ can only be done on the bulk freight carrier system at significant charge, NOT via couriers. Couriers will however take upto 1.8M lengths and Macs Equipment will cut to your specified length at no extra charge to ship at considerably less cost on the courier network.
